Transparent Stainless Steel Roll Up Door

YUOU® Transparent Stainless Steel Roll Up Doors utilize premium 304 stainless steel combined with a high-strength frame and transparent window design, achieving a perfect balance between security and visibility. The door body is robust and durable, resistant to impact and wear, meeting the high-frequency opening and closing demands of commercial and industrial environments while maintaining excellent long-term stability.

The stainless steel construction delivers outstanding corrosion resistance and rust prevention, making it particularly suitable for outdoor or humid environments. The transparent structure not only enhances spatial openness but also facilitates indoor/outdoor observation and display, improving security monitoring efficiency. The door operates smoothly with easy maintenance. Paired with optional anti-pinch, anti-collision, and automatic sensor devices, it provides reliable protection for various commercial, industrial, and high-security applications.

Technical Data

Door Panel Material	Polycarbonate
Frame Material	Stainless steel
Max Size(mm)	Width * Height 12000mm*12000mm
Power Supply	220±10%V, or 380V, 50/60Hz
Opening and Closing Speed	5-15m/min
Wind Resistance	24.5-32.6m/s (Class 8-11)
Installation Method	Middle, exterior, interior

Options

Door Panel Style	①Colorless ②Colorful ③Frosted
Hood Cover	①Needed ②No need
Voltage	Standard: 220V±10%. Other voltages can be customized.
Color	Opal/Bronze/Blue/Green/Green.etc Other colors can be customized.

Product Details

Interpret the comprehensive performance of stainless steel crystal roller shutters in terms of safety, protection and display through visualized product details

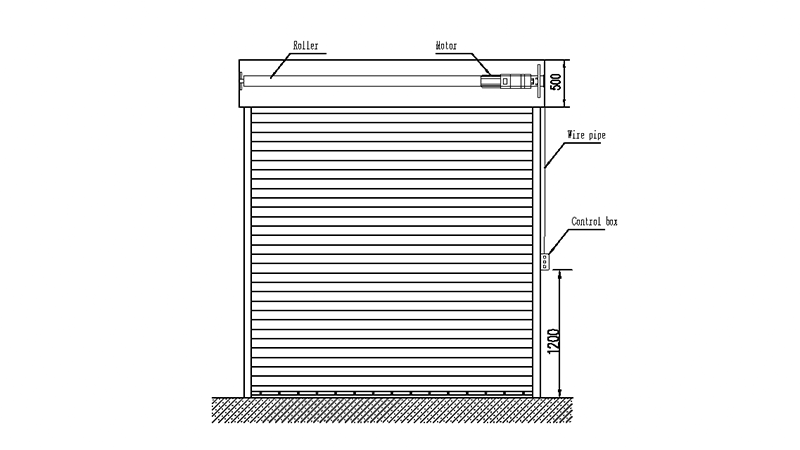

Structure Diagram

The Transparent Stainless Steel Rolling Shutter Door Structural Diagram clearly presents its precise structure and key components, helping you easily understand the operating principles and overall system design. This visual display highlights the balance between transparency, high strength, stable operation, and reliable performance of the door.

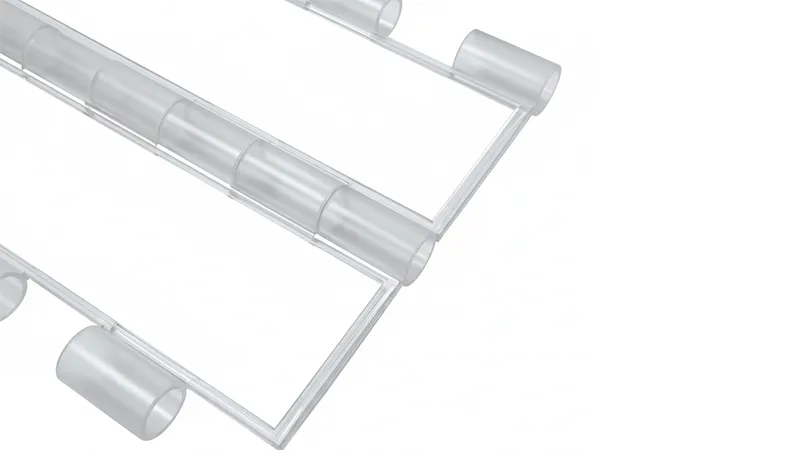

Door Pnael

The transparent stainless steel roller shutter door adopts 1.5mm thick high-strength PC (polycarbonate) transparent door panels. While ensuring good transparent lighting effect, it has reliable impact resistance, is not easy to break, and is safer and more durable. A reasonable thickness design helps the door body operate smoothly. PC material has excellent weather resistance and is not prone to aging after long-term use.

Motor

The transparent stainless steel rolling shutter door is equipped with a dedicated roller shutter motor designed for stainless steel door panel structures, ensuring smooth and stable operation and suitability for frequent opening and closing. The motor integrates electronic limit control and multiple safety protection functions to guarantee precise positioning, prevent over-rolling, and effectively protect the door structure, extending the overall service life.

According to the door size and weight, chain-driven motors are selected to provide stable output torque and reliable performance for different application requirements.

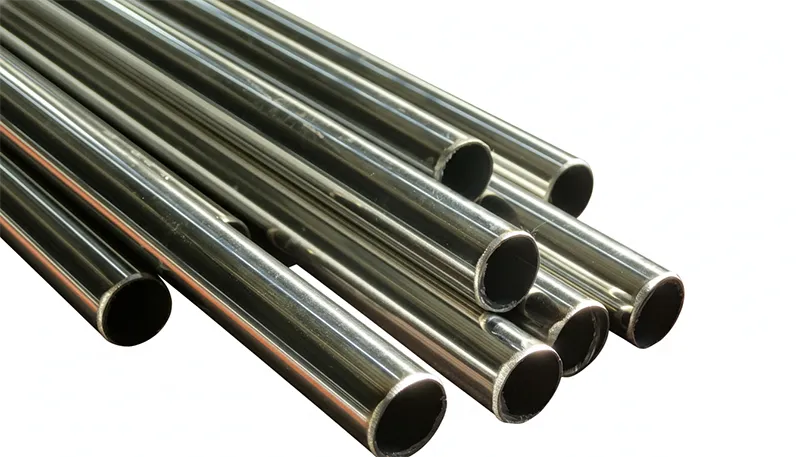

Windproof Rod

The wind-resistant rods of the transparent stainless steel rolling shutter door adopt a through-PC-panel fixing structure. The rods pass directly through the PC panels and are connected to the stainless steel door curtain frame, securely locking each PC panel into the entire door assembly. This structure effectively prevents the PC panels from shifting, warping, or loosening under wind pressure or external impact, significantly enhancing the overall stability of the door curtain.

With multi-point fixation between the wind-resistant rods and PC panels, the door maintains excellent transparency while offering improved wind resistance and impact resistance for reliable long-term performance.

Hood Cover

YUOU® Stainless Steel Crystal Roll Up Doors can be equipped with a protective cover box, which enhances the overall appearance with a cleaner and more refined look while effectively preventing dust from entering the rollers and motor to ensure stable operation.
For projects with limited installation space, the protective cover box can be omitted. Even without the cover, the transparent stainless steel crystal roll-up door maintains normal functionality and reliable overall performance.

Advantages

The stainless steel crystal rolling shutter door combines clear visual transparency with stable operation and premium durability, delivering balanced performance and strong overall value. With a reliable operating system and stainless steel structure, it is an ideal solution for high-end storefronts and display-oriented applications.

Anti-Theft

Stainless steel clear view rolling shutter doors combine clear visibility with a strong stainless steel structure and secure locking system, providing reliable protection against unauthorized access while keeping vehicles and goods safely protected.

Durable

The transparent stainless steel rolling shutter door is made of corrosion-resistant stainless steel profiles, polycarbonate panels, and weather-resistant surface finishes. Even in damp or rainy environments, it maintains stable performance and a clean appearance over long-term use with low maintenance requirements, helping reduce long-term operating costs.

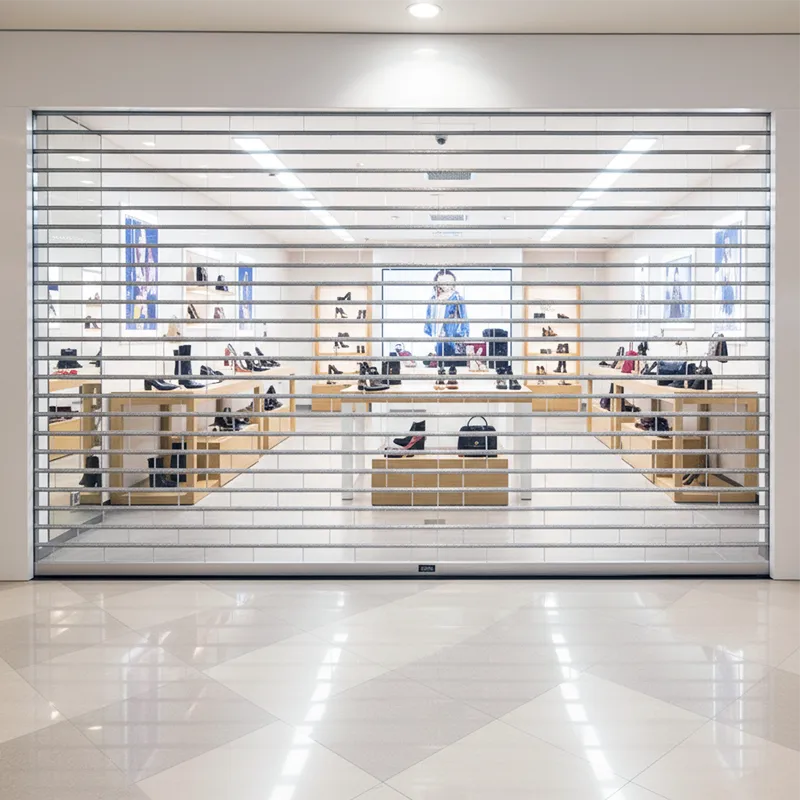

Clear Visibility & Daylighting

The transparent stainless steel roller shutter door is made of a stainless steel frame and PC transparent door panels, maintaining clear and transparent visibility even when closed. Introducing natural light to enhance brightness, improve passage safety, and create a modern and open storefront effect, it is suitable for display Windows, exhibition Spaces and commercial passageways.

Supports Larger Sizes

Compared to transparent aluminum alloy roll up doors, transparent stainless steel roll up doors offer superior strength and structural stability, enabling larger door designs without compromising safety or durability. The stainless steel material can withstand heavier loads and wind pressures, making large-span, highly transparent roller shutters feasible. This is particularly suitable for scenarios requiring large openings, such as industrial plants, large retail spaces, and public areas. Simultaneously, the stable frame structure ensures smooth operation and closure even at large dimensions, with easy maintenance that balances aesthetics and functionality.
