Special-grade fireproof rolling shutter door

Fire Rated Inorganic Fabric Roll Up Door

The YUOU® inorganic fabric fireproof rolling shutter door uses multi-layer composite inorganic fiber fireproof fabric as the core curtain material, featuring excellent high-temperature resistance and flame retardancy. It can effectively prevent the spread of flames and high-temperature smoke in the event of a fire, forming a reliable fire compartment. Inorganic materials do not burn or drip in high-temperature environments, which helps to delay the spread of fire and buy precious time for personnel evacuation and fire rescue.

The door structure is designed to be lightweight yet stable. Paired with a fire-rated motor and a robust roller system, it operates smoothly and reliably, making it ideal for large door openings and high-traffic public spaces. The system supports integrated control with fire alarm systems, automatically lowering to execute fire isolation measures upon fire detection. This reduces manual intervention and enhances overall emergency response efficiency.

YUOU® inorganic fabric fire-rated rolling doors combine fire resistance with space efficiency. Their compact rolling mechanism minimizes impact on building clearances, making them ideal for fire compartmentation in shopping mall atriums, public passageways, underground garages, and industrial facilities. This practical and reliable solution delivers effective fire separation.

Technical Data

Door Panel Material	Steel + Aluminosilicate rock wool
Frame Material	Galvanized steel
Power Supply	3phase 380v±10% 50Hz,DC24V Controller
Wind Pressure	490-1177Pa (14m/s)
Unexposed Surface Temperature	≤154℃
Weight	3.5kg/sqm
Running Speed	6m/min-10m/min
Curtain Smoke Leakage	≤0.12m²(sqm/min)
Motor Power	0.25-1.5KW, AC380V/50HZ
Opening Way	Electric/Manual Chain
Max. size	Roller type: 12m*12m Stacking type: any size, suitable for large, ultra wide and special door opening size
Certification	Chinese CCC

Options

Voltage	Standard: 3phase 380v±10%. Other voltages can be customized.
Other Fire-Fighting Devices	①Smoke Detector ②Heat Detector ③Smoke Barrier Wall

Product Details

Fire-resistant inorganic fabric with reinforced structure for reliable long-term fire protection.

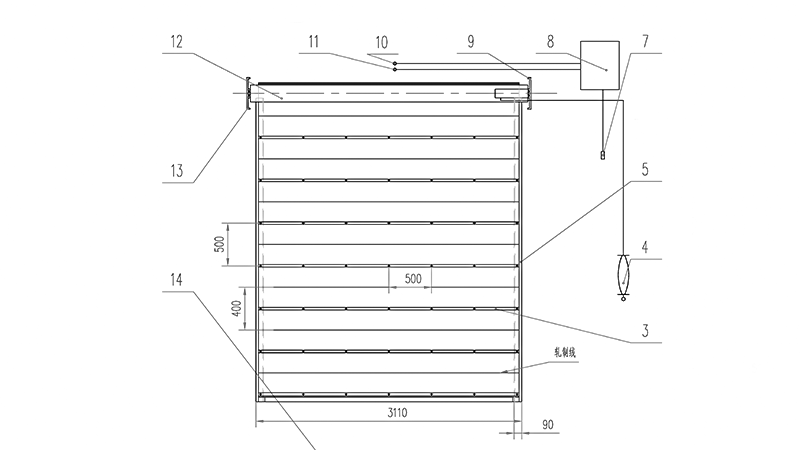

Structure Diagram

The Inorganic Fabric Fire Roller Shutter Door Structural Diagram clearly presents its fire-resistant structure and key components, making the door’s construction and working principle easy to understand at a glance.

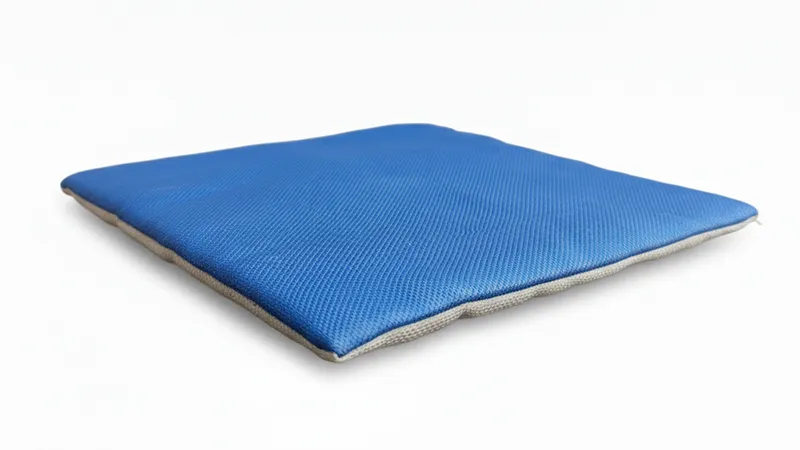

Door Curtain

YUOU® inorganic fabric fire-rated rolling doors feature a four-layer composite fire-resistant fabric structure. With inorganic fiber refractory materials at its core, combined with thermal insulation and reinforcement layers, it maintains stable flame-retardant and heat-insulating properties under high-temperature conditions. The multi-layer structure effectively blocks flame and heat transfer, delays the spread of high temperatures to the opposite side, and enhances overall fire compartmentalization.

The fire-resistant fabric does not burn or drip at high temperatures, maintaining structural integrity to preserve excellent integrity during fire conditions. When integrated with the rolling door system, it forms a reliable fire barrier.

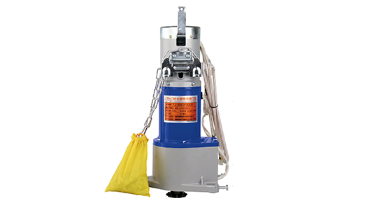

Fireproof Motor

The YUOU® inorganic fabric fire roller shutter door is equipped with a dedicated fire-rated motor for stable and reliable operation in emergency conditions. It supports linkage with fire alarm systems to automatically descend during a fire, enabling fast fire compartmentation. An optional manual release allows operation during power failure, ensuring safety and reliability.

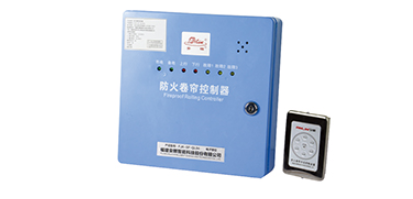

Electronic Limiters and Remote Control

The inorganic fabric fire roll up door features an electronic limit system for precise positioning, preventing over-travel and protecting the motor and door structure. Optional remote control ensures convenient and safe operation for industrial and commercial fire-protection use.

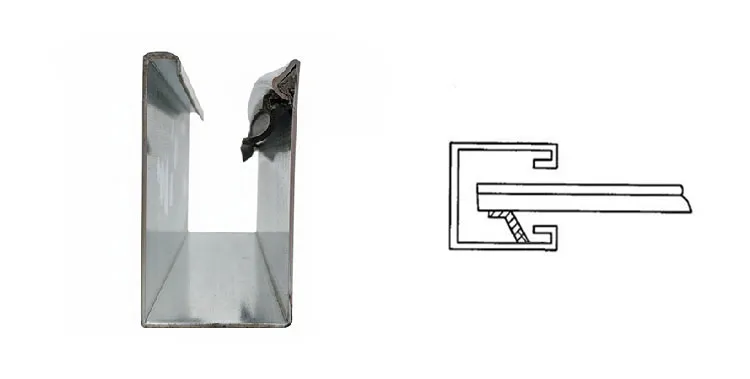

Track

The inorganic fabric fire roller shutter door uses high-strength steel guide rails with good rigidity and deformation resistance for stable long-term operation. A sealing strip is installed on one side of the track to improve airtightness and reduce noise. The reset wheel device helps keep the curtain running smoothly and prevents deviation during opening and closing.

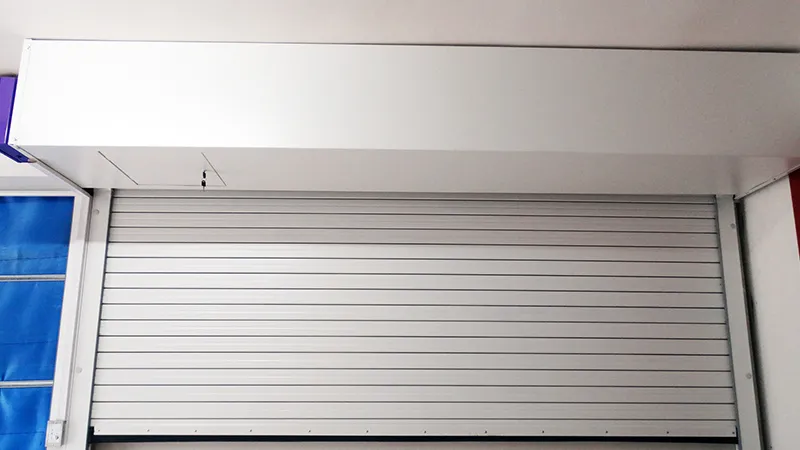

Hood Cover

YUOU® inorganic fabric fire roller shutter doors are typically equipped with protective cover boxes to keep a neat appearance and prevent dust from entering the roller and motor. The cover box is designed with a maintenance access opening for easy inspection and servicing.

Advantages

The inorganic fabric fire roller shutter door combines certified fire resistance, lightweight structure, stable operation, and high cost-effectiveness for reliable fire protection.

Excellent Fire Resistance

The inorganic fabric fireproof rolling shutter door adopts a multi-layer composite inorganic fiber fireproof fabric structure. It does not burn or drip in high-temperature environments and has a fire resistance duration of up to 3 hours, effectively preventing the spread of flames and high-temperature heat to the other side. Stable heat insulation performance helps to form reliable fire compartments in the event of a fire, providing more safe time for personnel evacuation and fire rescue.

Lightweight

The door body is made of steel structure, which is highly rigid and has a high load-bearing capacity. Even in large-sized door openings or high-frequency usage conditions, it can maintain good structural stability. The stable door structure is not prone to deformation in high-temperature environments, which helps to maintain the integrity of the door in case of fire and ensures the long-term reliable fireproof isolation effect.

Compact Winding Saves Installation Space

Inorganic fabric door curtains offer excellent flexibility and can be tightly rolled onto the shaft after opening, minimizing impact on building clearance. They preserve original ceiling height and overall design aesthetics, making them ideal for spaces requiring high spatial transparency, such as shopping mall atriums and public passageways.

Support the Linkage of the Fire Protection System

Inorganic fabric fireproof rolling shutter doors can be interlocked with the fire alarm system for control. When a fire occurs, they automatically receive signals and perform descending actions, quickly forming fire compartments, reducing reliance on manual operation, and enhancing the response efficiency and reliability of the overall fire protection system.
