Zipper High Speed Door

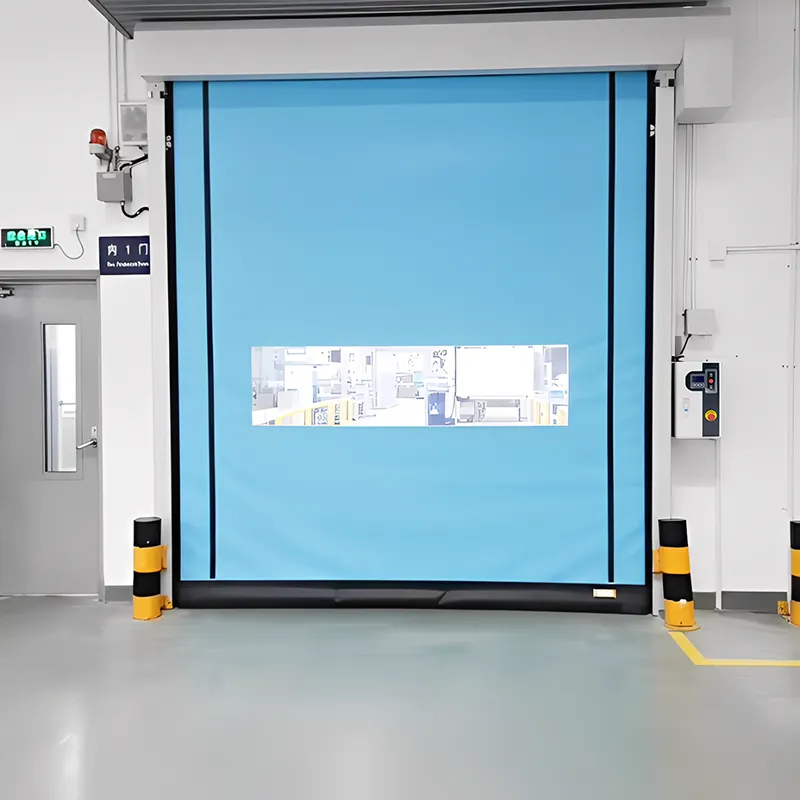

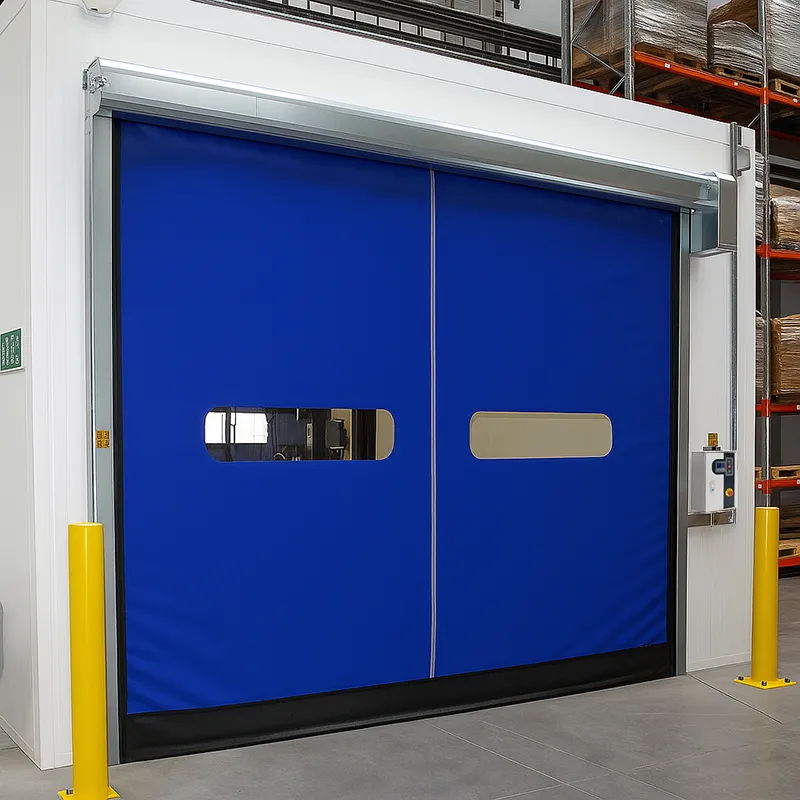

The YUOU® zipper high speed door is a type of rapid door in which the door curtain and the track are connected by a zipper. The design of the zipper makes the entire door more airtight, meeting the usage standards of hospitals or laboratories. We have also equipped this type of door with an automatic repositioning capability. When the door curtain accidentally leaves the track, it can automatically return to its original position, thus extending its service life. The speed adjustment function, sensing function and safety device can all be integrated and controlled through our intelligent motor and controller.

The color, window and door opening method can all be selected. Supports function customization. Within 12 months of purchase, if there are any quality issues with the product, free replacement parts will be provided. Lifetime technical guidance services are provided.

Technical Data

Curtain Material	PVC
Frame Material	Steel
Max Size(mm)	W5000*H5000
Max Opening Speed	2.5m/s
Max Closing Speed	1.0m/s
Normal Opening Speed	1.2m/s
Normal Closing Speed	0.6m/s
Voltage	220V±10%
Output Power	0.75KW-2.2KW
Motor IP level	IP54
Opening Frequency	1000 times/day
Wind Resistance	25m/s (Class 8)

Options

Frame	①Galvanized Steel ②Stainless Steel
Voltage	Standard: 220V±10%. Other voltages can be customized.
Color	Blue/Yellow/Red/Green/Grey/White/Transparent.etc Other colors can be customized.
Safety Device	①Airbag ②Alarm Light
Opening Method	①Control Box ②Remote Control ③Radar ④Geomagnetic Induction ⑤Pull Switch ⑥Gesture Sensing

Product Details

The meticulous design and manufacturing details ensure the high quality of the zipper rapid roller shutter door.

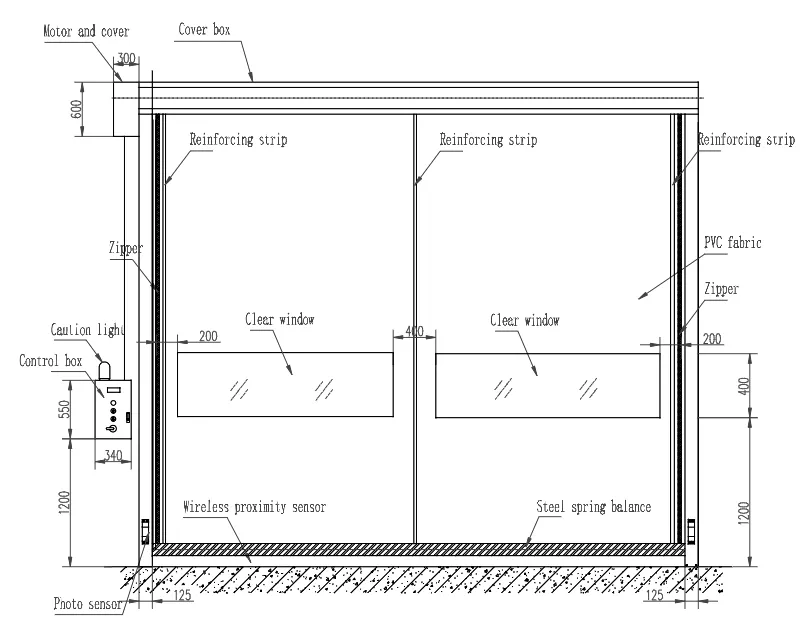

Structure Diagram

CAD drawings illustrate the key components of zipper high speed doors, including the curtain, track, scroll, motor, and control system. Optional non-standard configurations, such as windows or warning lights, are available. Exclusive CAD drawings are provided for each customer, offering a clear understanding of the zipper rapid door’s structure and design for better selection and installation.

PVC Fabric

Zipper rapid doors are made of environmentally friendly PVC material that is strong, flexible, and long-lasting. A wide range of colors is available to personalize the door according to your environment or preferences.

Standard thickness: 1.0mm (950g/sqm)

Optional thickness: 1.2mm–1.5mm

Flame-resistant material for enhanced safety

Zipper

The zipper-type connection structure keeps the door curtain in a highly sealed state with the track. Combined with the intelligent reset wheel system, it effectively prevents the zipper from misaligning, enhancing the overall operational safety and durability.

Motor and Controller

The zipper high speed door utilizes a special motor designed specifically for high speed operations and is crafted with the industry’s top manufacturing technology.

Featuring Italy’s advanced servo technology motor and controller, the system is equipped with an English interface for ease of use.

Additionally, it employs an absolute encoder paired with an inbuilt incremental encoder. This double encoder system ensures a low failure rate, enhancing the door’s reliability and performance.

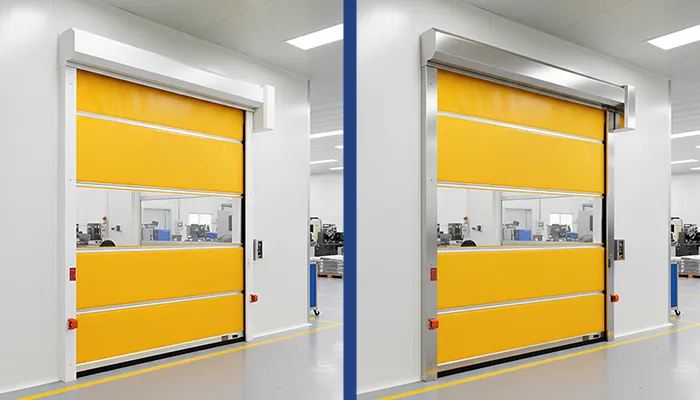

Sturdy Guide Rails and Covers

Zipper high speed doors are equipped with two guide rails, a top cover box, and a motor cover, available in galvanized steel or stainless steel.

Guide rail thickness: 1.5mm

Top cover box thickness: 1.0mm

Standard material: galvanized steel with painted surface

Optional material: 304 stainless steel or aluminum alloy
High-strength materials ensure stable door operation, ideal for high-frequency use in workshops and logistics centers.

Intelligent Safety Protection for Flexible Operation

If a person or vehicle is beneath the zipper high speed door, it immediately stops closing and automatically reverses. This feature prevents accidental collisions and protects both personnel and vehicles. With its quick response, the zipper rapid door ensures safe and efficient operation in high-frequency environments such as workshops, logistics centers, and industrial facilities.

Bottom Safety Airbag for Safe High-Frequency Operation

When a zipper high speed door descends and encounters an obstacle, the air inside the airbag senses the compression and immediately moves in the opposite direction. This function protects personnel and objects, reduces potential damage to the door, and lowers maintenance costs, making it ideal for high-frequency operation in workshops and logistics centers.

Multiple Opening Methods for Flexible Operation

Zipper rapid doors offer several opening options to meet diverse operational needs:

Vehicle Loop Detector: Automatically opens when a vehicle approaches for seamless entry and exit.
Radar Sensor: Ideal for high-traffic areas, detecting motion for touchless operation.
Push Button: Simple and reliable, suitable for precise control.
Pull Switch: Easy to operate, commonly used in industrial settings.
Remote Control: Opens from a distance for flexible operation.

These options enhance the functionality of zipper rapid doors, providing efficient and convenient operation in workshops and logistics environments.

Advantages

Zipper rapid doors are popular in laboratories, chemical plants and pharmaceutical factories due to their high environmental control characteristics. Keep dust and bacteria out.

High Air Tightness

The design of the zipper linking the door curtain and the track can highly prevent air exchange when the door is closed. The ultra-fast operating speed can also greatly reduce the maintenance time of the door's open state. The combination of the two can ultimately bring out the advantage of the zipper rapid door in maintaining environmental cleanliness.

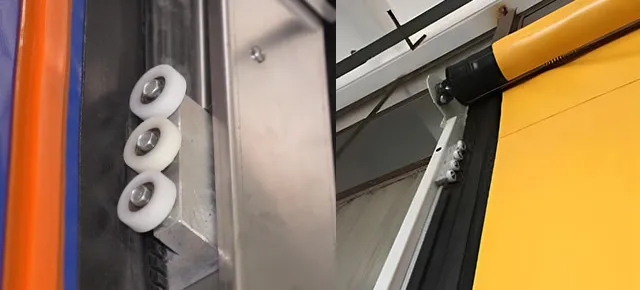

Automatic Reset

The YUOU® zipper rapid roller shutter door door is equipped with multiple reset wheels on both sides of the track. These reset wheels can ensure the normal operation of the zipper when the zipper rapid door is in operation. It can help the zipper return to its original position when the door is hit and the zipper is accidentally misaligned.

Speed

Even the rapid roller shutter door with a zipper structure does not affect its operating speed in the slightest. It can still maintain the same speed upper limit as the ordinary PVC rapid roller shutter door. The combination of the two features of the high-speed zipper chain can maximize the dust-proof and anti-bacterial performance of the zipper rapid door.

Energy Efficiency

The zipper rapid door upgrades the brush of the ordinary PVC rapid door to a zipper structure. Further enhance the ability of the rapid door to isolate air. Reduce the need to control the indoor environment with other devices.

Safety

Considering that the running speed of this kind of door may prevent people passing by from responding in time. We have designed various safety measures for it, including airbags and optical fiber sensors. Moreover, due to its special zipper design, the zipper rapid door has no hard metal rods on the door curtain. The soft door curtain, made entirely of soft PVC tarpaulin, further minimizes the degree of danger.

Durable Materials with Low Maintenance

Zipper rapid doors are made of thick, wear-resistant PVC curtains and high-quality steel, enhancing durability and lifespan. Excellent design and low maintenance requirements further improve door longevity, ensuring stable, long-term operation in high-frequency industrial and logistics environments.

Compact Design with Minimal Space Requirement

Zipper rapid doors use flexible PVC curtains that occupy very little space when rolled up. The scroll, track, and motor are also designed compactly, minimizing overall footprint. This makes zipper rapid doors ideal for workshops and logistics centers with limited architectural space.
