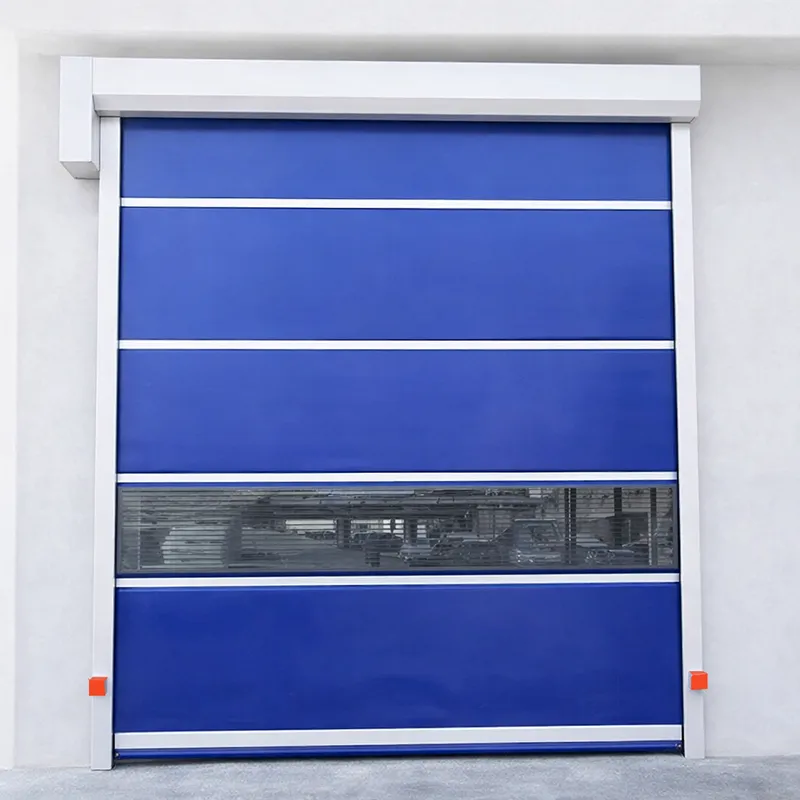

PVC High Speed Door
The YUOU® PVC rapid door is specially designed for speed and dust prevention. The simple structure of the PVC rapid door enables it to be applied in most indoor and outdoor places such as flushing and refrigeration. The soft and lightweight door curtains do not take up much space when stored and do not require any architectural renovation. The speed and lifting height can be adjusted according to the working rhythm.
The design also takes into account the addition of more security features. A variety of safety devices such as radar, light sensors, police lights and airbags are all supported for installation. The smart motors and control boxes we use also support the integration of various different door opening methods. Including radar, geomagnetic induction, pull ropes and remote controls, etc.
Technical Data
| Curtain Material | PVC |
| Frame Material | Steel |
| Max Size(mm) | W6000*H6000 |
| Max Opening Speed | 2.5m/s |
| Max Closing Speed | 1.0m/s |
| Normal Opening Speed | 1.2m/s |
| Normal Closing Speed | 0.6m/s |
| Voltage | 220V±10% |
| Output Power | 0.75KW-2.2KW |
| Motor IP level | IP54 |
| Opening Frequency | 1000 times/day |
| Wind Resistance | 28m/s (Class 10) |
Options
| Curtain | ①️PVC ②PVC mesh |
| Frame | ①Galvanized Steel ②Stainless Steel |
| Voltage | Standard: 220V±10%. Other voltages can be customized. |
| Color | Blue/Yellow/Red/Green/Grey/White/Transparent.etc Other colors can be customized. |
| Safety Device | ①Airbag ②Alarm Light |
| Opening Method | ①Control Box ②Remote Control ③Radar ④Geomagnetic Induction ⑤Pull Switch ⑥Gesture Sensing |
Product Details
The meticulous design and manufacturing details ensure the high quality of the PVC rapid roller shutter door.

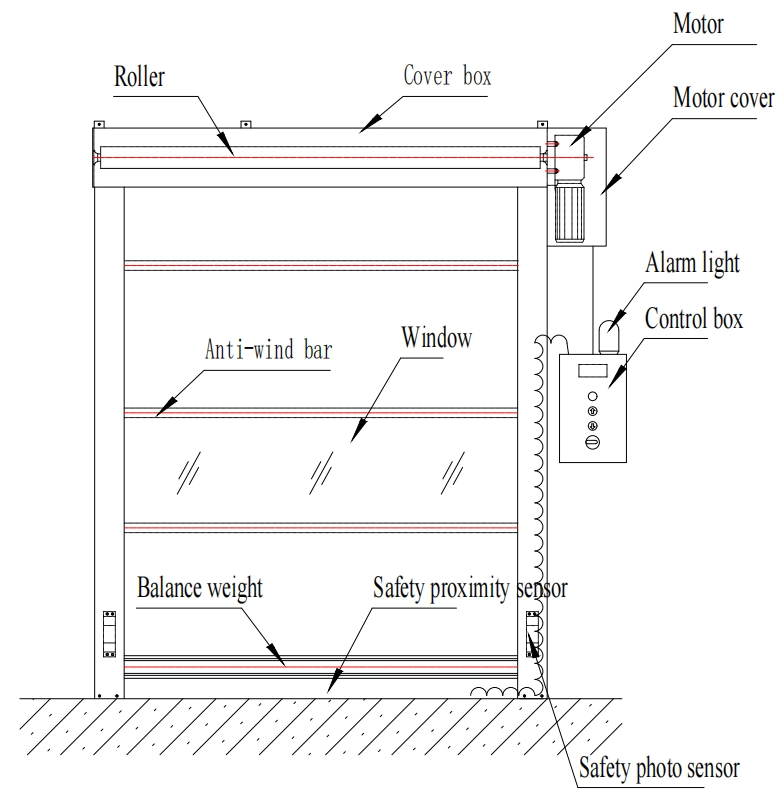

Structure Diagram
CAD drawings clearly display the structure of the PVC high speed roll up door, including the curtain, track, scroll, motor, control box, and other key components. Optional non-standard configurations, such as windows or warning lights, are available. Exclusive CAD drawings are created for each customer, providing a clear understanding of the PVC rapid door’s structure and configuration to ensure smooth installation and operation.
PVC Fabric
The PVC material used in high speed doors is not only environmentally friendly but also safe and sturdy. Select from a wide array of colors to personalize your doors according to your preferences.
Standard thickness:1.0mm(950g/sqm).
Other thickness available:1.2mm-1.5mm;
Flame resistant material.
Motor and Controller
The PVC high speed door utilizes a special motor designed specifically for high speed operations and is crafted with the industry’s top manufacturing technology.
Featuring Italy’s advanced servo technology motor and controller, the system is equipped with an English interface for ease of use.
Additionally, it employs an absolute encoder paired with an inbuilt incremental encoder. This double encoder system ensures a low failure rate, enhancing the door’s reliability and performance.
Sealed Brush
Stacking high speed doors are equipped with high-density sealing brushes on the inner side of the track, closely adhering to the door curtain. This effectively prevents dust and air from entering through the track gaps. The optimized sealing maintains environmental cleanliness even under frequent high-speed operation, meeting the stringent requirements of workshops, warehouses, and industrial facilities while improving energy efficiency.
Photocell Sensor
When someone or a vehicle is under the PVC rapid roller shutter door door, it will stop closing and automatically reverse.
This safety feature is designed to prevent accidental collisions and ensure protection for both people and vehicles.
By immediately detecting and responding to obstacles, PVC high speed roller shutter door help maintain a safe and efficient environment.
Safety Bottom Edge
When the PVC rapid door descends and hits an obstacle, the air in the airbag will sense the compression and then move in the opposite direction.
This function can not only prevent people or objects from being injured, but also reduce the probability of damage to the rapid door. Reduce maintenance costs.
Frame and Rails
The PVC high speed door features two sturdy guide rails, a top cover box, and a motor cover, all available in galvanized steel or stainless steel.
Thickness:1.5mm guide rail;1.0mm cover box.
Standard material:Galvanized steel,surface is painted.
Optional material:304 stainless steel or aluminum alloy.
Opening Methods
PVC rapid roll up doors usually offer five different methods for opening, allowing you to choose the one that best suits your operational needs:
Vehicle Loop Detector:
Radar Sensor:
Push Button:
Pull Switch:
Remote Control:
For ultimate convenience, the remote control enables the door to be opened from a distance, perfect for environments where mobility is necessary.
Each of these options enhances the functionality of PVC high speed doors, catering to diverse operational requirements and ensuring optimal performance in various settings.
Advantages
Combining high-speed operation, advanced safety protection, stable structure, and intelligent control to meet the demanding requirements of modern industrial environments for efficiency, sealing, and reliability.
Speed
The YUOU® PVC high speed roller shutter door is specially designed for rapid operation. This rapid opening and closing mechanism has enhanced the productivity and efficiency of modern industry. In addition, the operating speed of the PVC rapid door can be adjusted through the control box.
Energy Efficiency
The PVC rapid roller shutter door not only enhances work efficiency. Improving energy efficiency is also one of its major features. That is, high-speed opening and closing can minimize or increase heat loss to the greatest extent. It helps maintain a stable indoor temperature in a climate-controlled environment. Ultimately, it reduces the additional costs and environmental pollution required for temperature control.
Safety
Considering that the running speed of this kind of door may prevent people passing through from responding in time. We have designed a variety of safety measures for it, including airbags and light sensors. And the soft door curtains made of PVC tarpaulin further minimize the degree of danger.
Durability
We deliberately choose thickened and sturdy PVC fabric and high-quality steel. Enhance wear resistance and extend service life. Moreover, the quality and design with low maintenance requirements also enhance its durability to a higher level.
Clean
The design of this kind of door can prevent dust, water and oil stains. The fast running speed and various contactless opening methods enable the PVC rapid door to greatly reduce the air exchange between the indoor and outdoor and the spread of bacteria.
Efficient Space Utilization and Flexible Installation
The soft PVC door curtain takes up very little space when rolled up. The scroll, track and motor, among other parts, also occupy only a small amount of space in total. The requirements for architectural space are very low.
