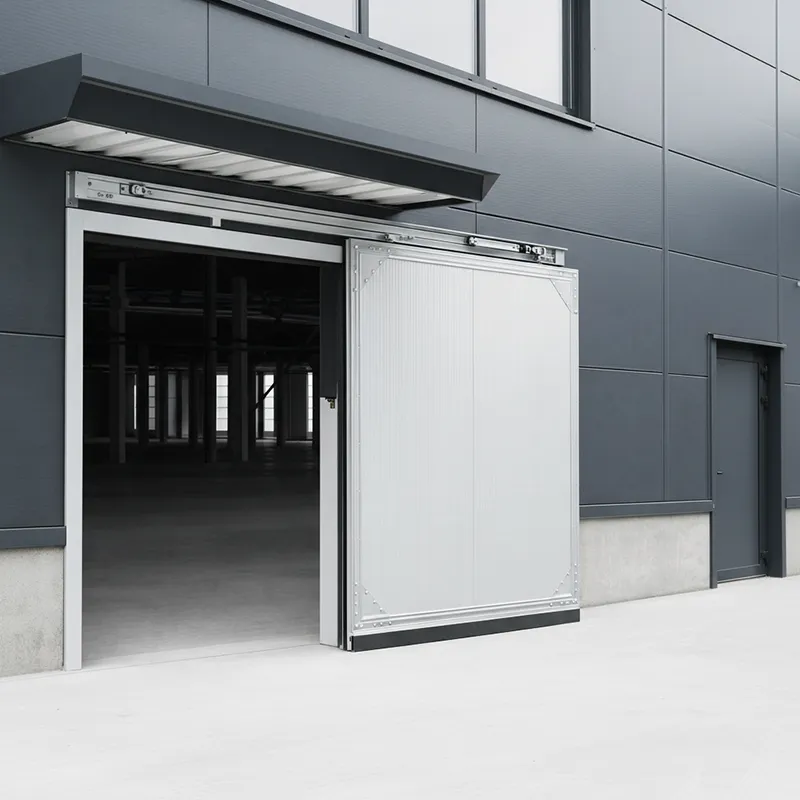

Industrial Sliding Door

YUOU® industrial sandwich panel sliding door is a door system suitable for large industrial buildings. It is designed with high-strength sandwich panel door panels and a stable sliding track structure. When the door opens, it slides horizontally along the direction of the wall, not occupying the top space. It is particularly suitable for wide door opening scenarios such as factories, warehouses and large equipment passageways.

The door panel adopts a PU polyurethane sandwich structure, composed of double-layer metal panels and high-density insulation core materials, featuring excellent structural strength, heat insulation performance and wind resistance. The entire system is equipped with heavy-duty slide rails and guide wheels to ensure smooth operation and uniform force distribution of the door body.

YUOU® industrial sandwich panel sliding doors support small door opening, and can be customized in color and material. Provide after-sales guarantee and technical support. No worries about parts replacement.

Technical Data

Door Panel Material	Galvanized steel+ Polyurethane Foam
Frame Material	Galvanized Steel
Max Size(mm)	Unlimited
Standard Door Panel Thickness	50mm
Power supply	220V, 50/60HZ or 380V, 50/60HZ
Wind resistance	10-12 Class (24-28m/s)

Options

Window	Support customization
Small Door	Support customization
Voltage	Standard: 220V±10%. Other voltages can be customized.
Color	Grey/White/Blue/Black.etc Other colors can be customized.

Product Details

From the door panel structure to the drive and sliding system, the industrial sliding door demonstrates precise engineering design and reliable performance in every detail.

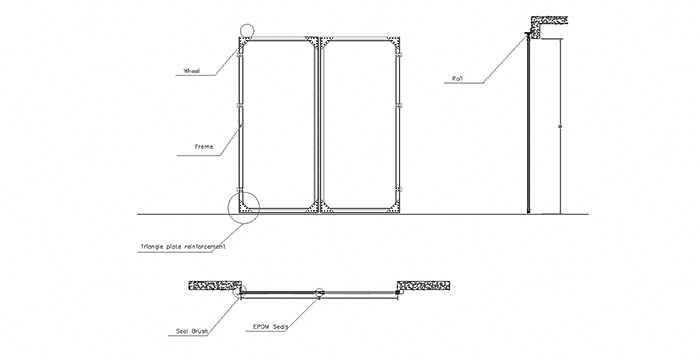

Structure Diagram

The industrial sliding door structural diagram clearly presents its door panel configuration, sliding track system, and drive components, allowing you to quickly understand the door’s construction and operating principle.

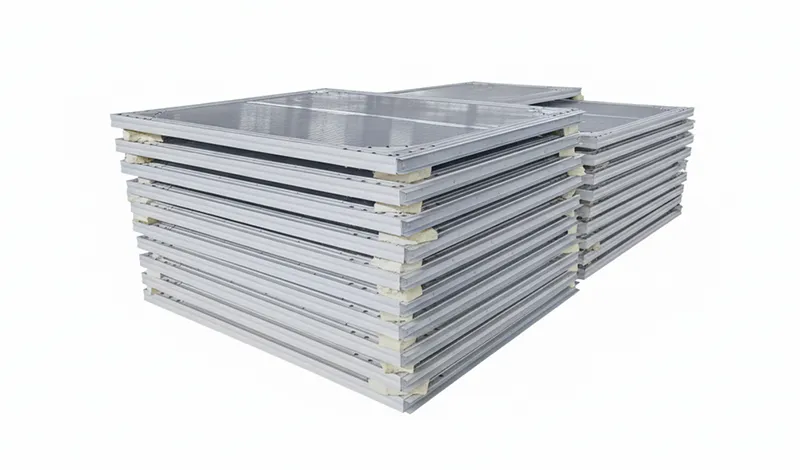

Door Panel

The door panels of YUOU® industrial sliding doors usually adopt a high-strength PU polyurethane sandwich panel structure, which is composed of double-layer metal panels and high-density insulation core materials. The sandwich structure not only enhances the overall rigidity of the door panel but also provides excellent heat insulation and sound insulation performance, ensuring the stability and durability of the door body in industrial environments.

The metal layer on the surface of the door panel has undergone anti-corrosion treatment, which endows it with excellent weather resistance and impact resistance, making it suitable for long-term outdoor or complex industrial environments. The thick core structure enables the door panel to maintain excellent wind resistance and structural stability even in large-sized door openings, providing reliable strength support for industrial sliding doors.

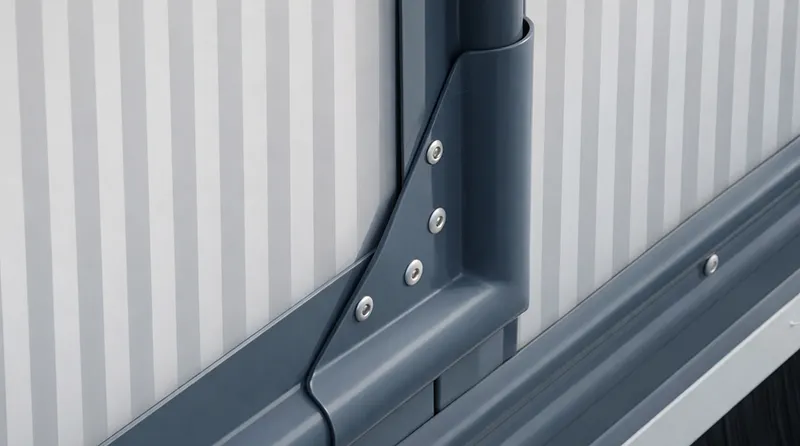

Edge Cover of Door Panel

The four sides of the industrial sliding door panel are reinforced with aluminum alloy or galvanized steel edge structure, effectively enhancing the overall strength and edge stability of the door panel. Metal edge banding not only enhances the impact resistance of the door panel during opening and closing, but also prevents the edges of the door panel from deforming or wearing out due to long-term use.

Meanwhile, the edge structure can protect the sandwich door panel, enhancing the durability and structural integrity of the door body. Aluminum alloy edge banding features light weight and corrosion resistance, while galvanized steel edge banding offers higher structural strength and can be selected based on different usage environments and project requirements.

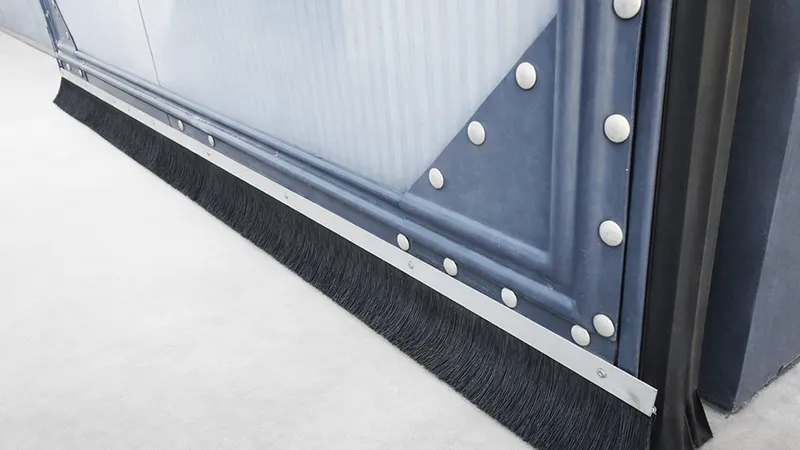

Sealing Strips and Brushes

The industrial sliding door panel is equipped with a combined structure of sealing rubber strips and sealing brushes, further enhancing the overall sealing performance of the door body. The sealing rubber strip is installed at the connection position of the door panel, which can effectively fill the gap and reduce the entry of air, dust and rainwater into the indoor space.

Meanwhile, high-density sealing brushes are installed at key parts of the door body, which remain in close contact with the door frame during operation. This not only enhances the dust-proof effect but also serves as a buffer and reduces noise when opening and closing. The double-sealing design enables industrial sliding doors to maintain smooth operation while enhancing overall air tightness and environmental protection capabilities.

Advantages

Industrial sliding doors feature a robust structural design, smooth sliding operation, stable performance and excellent cost performance, providing an efficient solution for large industrial openings.

Ultimate Space Utilization

Industrial sliding doors adopt a parallel sliding operation mode that closely adheres to the wall. When the door body is opened, it is completely hidden on both sides of the wall and does not need to occupy the longitudinal space between the indoor and outdoor like swing doors. This design is particularly suitable for factories and warehouses where the space in front of or behind the door is limited and large vehicles or equipment need to enter and exit frequently.

Outstanding Wind Resistance and Durability

In response to the strict requirements of industrial environments, industrial sliding doors typically use 50mm thick high-strength color steel plates and foam sandwich panels as their panels, with steel frames for internal support. In combination with the upper and lower double guide rail system, the door body is evenly stressed. Even in coastal typhoon areas or open logistics parks, it can remain stable and is not prone to deformation or derailment.

Excellent thermal Insulation and Sealing Performance

The interior of the door panel is usually filled with high-density polyurethane foam material or rock wool, which has excellent thermal insulation and sound insulation effects. In addition, industrial-grade ethylene propylene diene monomer (EPDM) sealing strips are installed around the door body and at the joints of the door panels. When the door is closed, it can effectively prevent the intrusion of cold and hot air, dust and rain from the outside, maintaining the stability of the indoor environment.

Runs Smoothly

YUOU® industrial sliding doors are equipped with heavy-duty load-bearing wheels and high-quality guide rails. Even though the door body is extremely heavy, it still operates smoothly and quietly. When used in conjunction with dedicated industrial door openers, it can achieve various automatic control methods such as remote control, radar, geomagnetic induction, and card swiping.

Low Maintenance Cost

Compared with industrial sectional doors or folding doors, sliding doors have a more intuitive and simple mechanical structure, without complex torsion springs or hinge systems, and have very few vulnerable parts. In daily use, it is only necessary to clean the guide rails regularly and add lubricating oil. The later maintenance and repair costs are very low, and the service life is extremely long.
