Industrial Sectional Door with Rib
The YUOU® industrial sectional door with back ribs is specially designed for high wind pressure and strong sandstorm environments. It significantly enhances the overall strength and wind resistance by strengthening the structure at the back of the door panel. This series of sectional door offers two structural solutions: back-ribbed door panels and external back-ribbed ones, based on different door opening sizes and usage requirements, to achieve more reasonable force distribution and higher structural stability.
For conventional-sized industrial sectional door, adding external back ribs on the basis of the original door panel structure can effectively enhance the rigidity of the door body, improve wind resistance, and at the same time take into account cost and installation efficiency. For super-large-sized industrial sectional door, especially those with wide spans, a back-ribbed door panel structure is adopted. By integrating reinforcing ribs inside the door panel, the door body can maintain good flatness and stability under large-scale wind exposure, avoiding deformation or operational obstruction.
Technical Data
| Door Panel Material | Galvanized steel + PU faom |
| Frame Material | Steel |
| Max Size(mm) | W12000*H8000 |
| Power Supply | 220±10%V, or 380V, 50/60Hz |
| Opening and Closing Speed | 20-40cm/s |
| PU Density | 48±2kg/m³ |
| Wind Resistance | 28-35m/s (Class 10-12) |
| Sound Insulation Level | 24DB |
| Motor IP level | IP55 |
| Insulation Level | 0.38W/M°C |
| Water Tightness | 30Pa |
| K Value | 1.5W/M²•K |
Options
| Door Panel | ①Galvanized steel + PU foaml |
| Frame | ①Galvanized Steel ②Stainless Steel |
| Window | Customizable |
| Small Door | Customizable |
| Voltage | Standard: 220V±10%. Other voltages can be customized. |
| Color | Blue/Yellow/Red/Green/Grey/White.etc Other colors can be customized. |
| Safety Device | ①Anti-fall device ②Airbag |
| Lifting Method | ①Standard lifting ②High lifting ③Vertical lifting |
Product Details
Premium materials and refined details built for long-term industrial use

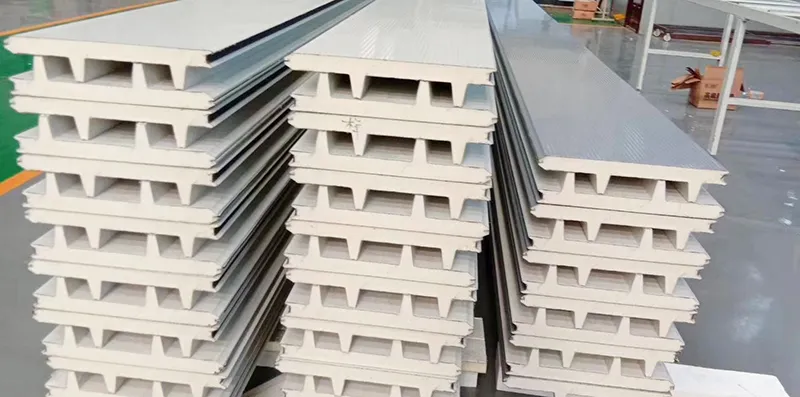

Door Panel with Back Ribs
The back-ribbed door panel integrates a high-strength reinforcing rib structure on the back of the door panel. By increasing the overall rigidity of the door panel, it effectively enhances the wind pressure resistance and deformation resistance. This structure can keep the door panel flat and stable under conditions of large-scale wind exposure or frequent operation, avoiding bending and operational deviation caused by wind pressure or self-weight.

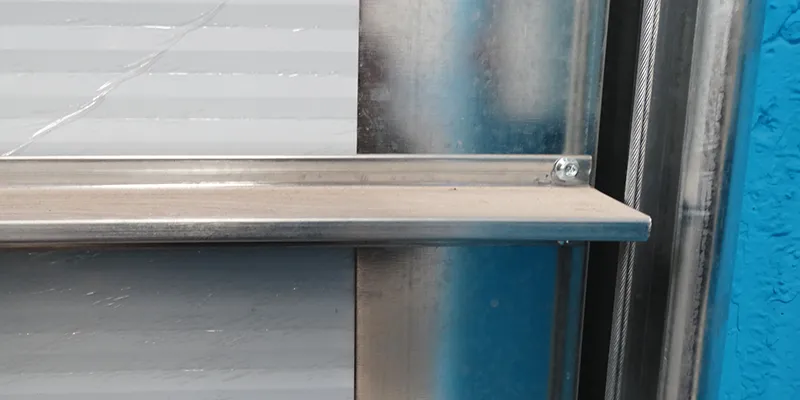

External Back Rib
Motor and Controller
Controlling program securing smooth movement.
Fast-action brake and accurate mechanical limit.
Inbuilt with Thermal overload protector.
With manual chain to operate during power failure.
High-grade lubricate grease,“0”maintenance.
Safety sensor is available.
Remote control is available.
Heavy-Duty Balance Spring System
For reinforced sectional overhead doors with back ribs, the balance spring system effectively offsets the increased panel weight, enabling stable and reliable lifting through a steel wire rope.
The spring brake device offers anti-break protection, ensuring safe operation even under high-load conditions.
With a service life of up to 100,000 cycles and a 140N driving force, the spring system is precisely configured according to door size, weight, and lifting pattern for heavy-duty applications.
Falling Protection Devices
Industrial sectional doors are usually very heavy and can cause serious accidents if the door suddenly falls during opening.
This fall prevention device can prevent the door from falling suddenly and increase safety.
Door bottom is equipped with droping avoid steel cord, securing the accident dropping within 5cm.
Heavy-Duty Three-Angle Wheel Support System
For reinforced sectional overhead doors with back ribs, the heavy-duty three-angle wheel support system evenly distributes door weight from multiple angles, maintaining stable wheel movement under high-load conditions. This design reduces friction and vibration, prevents track deviation and abnormal wear, and ensures reliable performance in demanding applications.
Beam Seals
Industrial sectional overhead doors are fitted with EPDM sealing rubber along the top, bottom, and periphery. The beam seal enhances the door’s airtightness and minimizes gaps. This optimized sealing improves thermal insulation and wind resistance, providing more stable indoor conditions and energy savings in industrial and warehouse environments.
Manual Device(Smaller size only)
When a power outage or power failure occurs, the industrial sectional door can be emergency opened through a manual zipper device, allowing the door to be smoothly opened even in the absence of electricity, ensuring the normal passage of people and vehicles, and enhancing the overall safety and reliability of use.
Bottom Wireless Safety Airbag
An optional airbag protection device can be equipped. When the bottom of the door encounters people, vehicles or other obstacles during the descent process, the airbag will quickly sense the change in internal air pressure and immediately trigger the door to stop or reverse, effectively avoiding pinching and collision accidents, and further enhancing the safety of the industrial sectional door in daily use.
Lifting method
There’s no need to worry about whether or not your building can be fitted with a sectional door. Our sliding lift doors have a variety of lifting options to choose from, which are used to adapt to different situations in your building. You are guaranteed to be able to use our sliding doors on your building. The above 8 boosts will satisfy most building situations. If there are other needs you can contact us for customization.
Advantages
The industrial sectional door combines structural strength, heat preservation, stable operation and friendly price, with a more outstanding overall performance and higher cost performance.
Security
Industrial sectional doors can be equipped with multiple safety devices to ensure safe and reliable operation in high-traffic environments. The fall-prevention device instantly locks the door if the spring or wire rope breaks, preventing sudden drops and protecting personnel and equipment. An optional bottom safety airbag stops door movement immediately when an obstacle is detected, reducing the risk of injury or damage in areas with frequent access. For power outages, a manual emergency chain allows the door to be opened smoothly without interrupting operations. In addition, anti-pinch door panels further protect operators during door operation.
Wind Resistance
This type of door effectively enhances its overall wind resistance through a reinforced door panel structure and a stable guiding system, ensuring the door body remains flat and operates stably even in strong wind conditions. The door panel is evenly stressed when exposed to wind, is less likely to deform or derail, and can significantly reduce the risk of faults caused by wind pressure. It is particularly suitable for industrial sites with strong winds or open environments.
Thermal insulation
Industrial sectional overhead doors feature polyurethane foam-filled panels with excellent thermal insulation properties. The 40mm-thick panels provide superior heat retention compared to standard industrial doors, helping maintain stable indoor temperatures in warehouses and logistics facilities while reducing energy consumption.
Energy Efficiency
The heat preservation capacity of industrial sectional door makes the indoor temperature less likely to change. It can reduce the energy consumed to maintain the indoor temperature. For example, the use of air conditioners or heaters can be reduced. It is also more conducive to environmental protection.
Space-Saving Design
It does not affect the operation of forklifts, trucks and shelves inside and outside the door. Industrial sectional door adopts the opening method of vertical rise, the door plate slides upward along the track, making full use of the height space of the building, and turning the originally unused vertical space into the activity area of the door body.
