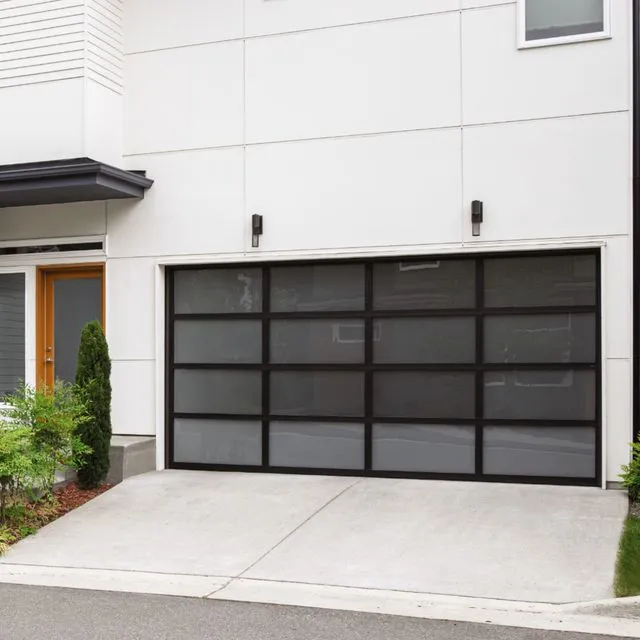

Glass Garage Door

YUOU® transparent glass garage door adopts a high-strength aluminum alloy frame and tempered safety glass structure, balancing a transparent visual effect and stable performance. All door panels have undergone strict craftsmanship and quality control to ensure their safety and stability during long-term use.

Aluminum alloy profiles, after anodizing or high-quality spraying treatment, possess excellent corrosion resistance and weather resistance, making them suitable for various climatic conditions. The precise splicing structure supports frameless or semi-frame transparent design, enhancing the lighting effect while maintaining the overall strength of the door body.

The product is compatible with multiple automatic opening systems, operates smoothly and quietly, and supports customization in size, color and glass style. It is widely applicable to high-end residential and commercial garage projects.

Technical Data

Door Panel Material	Glass/PC
Frame Material	Aluminum alloy
Truck Material	Steel
Max Size(mm)	W12000*H8000
Power Supply	220±10%V, or 380V, 50/60Hz
Opening and Closing Speed	20-40cm/s
Wind Resistance	28-35m/s (Class 10-12)
Sound Insulation Level	24DB
Motor IP level	IP55
Water Tightness	30Pa

Options

Window Material	①Glass ②PC(Polycarbonate)
Small Door	Customizable
Voltage	Standard: 220V±10%. Other voltages can be customized.
Frame Color	White/Grey/Black/Blue/Yellow/Red.etc Other colors can be customized.
Safety Device	①Anti-fall device ②Airbag

Product Details

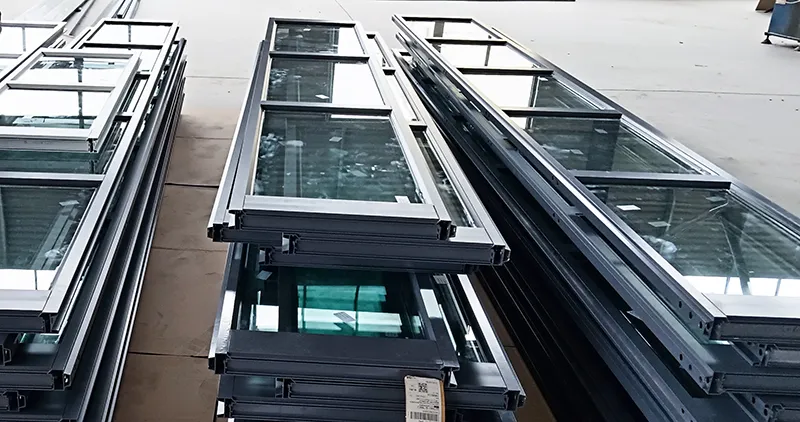

Premium Glass Panels and Refined Structural Details for Modern Garage Design

Structure Diagram

The CAD drawing clearly shows the structure of the transparent garage door. Including door panels, tracks, springs, motors, control boxes, etc. Optional non-standard configurations such as Windows and small doors are available. We will draw exclusive CAD drawings for each customer. Let everyone have a clear understanding of the sectional garage door they need.

Sandwich Panel

Material: Powder coated galvanized steel /pre-colored galvanized steel+Polyrethane foam(inside)
Thickness of the panel: 40mm/50mm(Standard thickness is 40mm）
Panel length:2m-12m. Panel width:500mm

Foam sandwich panels are utilized as the foundation for sectional garage doors.
The galvanized steel plate, with a thickness of 0.4mm, is coated with a layer of powder for added protection.The steel plate can be pre-colored before the coating process.

Precision Motor System for Transparent Garage Doors

Transparent garage doors are powered by a high-quality, industry-leading motor system engineered for smooth, quiet, and precise operation.
The advanced control program ensures stable movement, while the fast-action brake and accurate mechanical limit protect the door during opening and closing cycles.
An integrated thermal overload protector enhances operational safety, and a manual chain enables emergency operation during power failure.
High-grade lubricating grease reduces vibration and mechanical wear, supporting reliable performance and low maintenance for transparent door applications.

Precision Balance Spring System

Designed for full vision garage doors, the balance spring system provides precise weight compensation for glass or transparent panels, ensuring smooth and quiet operation.
An anti-break spring brake device enhances safety and protects the door structure during daily use.
Rated for 100,000 operating cycles and a 140N driving force, the spring system is custom-selected based on door size, panel weight, and lifting pattern to meet the requirements of transparent door designs.

High-Precision Three-Angle Wheel Guide System

Engineered for the higher stability and precision demands of full vision garage doors, the three-angle wheel guide system delivers stable support and accurate alignment during operation. Multi-angle load distribution minimizes vibration and deviation, ensuring quiet and smooth movement while reducing long-term stress on glass panels and frames.

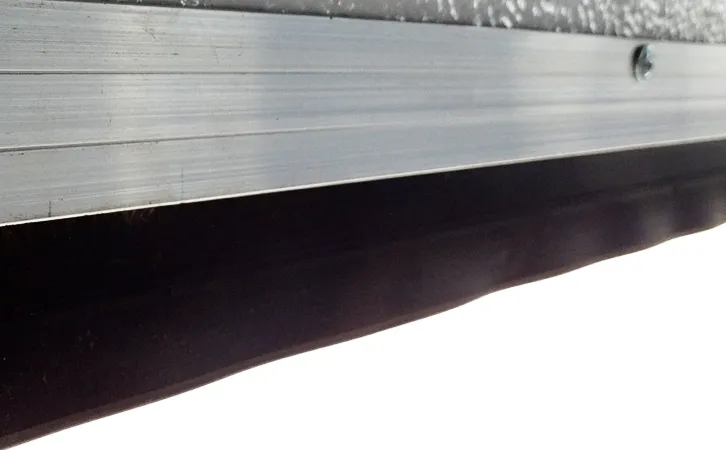

Beam Seals

The bottom of the door body is equipped with high-elasticity rubber strips, which can effectively adhere to uneven ground, significantly reducing the infiltration of dust, rainwater and cold air, and enhancing the overall sealing performance. This structure helps maintain a stable indoor environment and is particularly suitable for places with high requirements for protection and environmental control.

Lifting Method

We have designed various door panel lifting methods for different building structures and on-site conditions, enabling the transparent garage door to flexibly adapt to various building environments and ensuring smooth installation and stable operation.

Advantages

Detail-oriented engineering and precision manufacturing to deliver superior quality, enhanced performance, and an extended service life for long-term reliable use

Enhance Visibility and Security

The transparent design makes the environment inside and outside the garage clearly visible, allowing drivers to observe the surrounding conditions in advance when entering and exiting, reducing blind spots, which helps improve the safety of passage and also enhances the sense of security during daily use.

Enhance Natural Lighting

Large areas of transparent or semi-transparent door panels can fully introduce natural light, effectively improving the lighting conditions inside the garage, reducing the reliance on artificial lighting during the day, thereby lowering energy consumption and enhancing the overall comfort of use. They are particularly suitable for Spaces that have requirements for environmental brightness.

Modern Appearance and Display Effect

The YUOU® transparent garage door, with its simple and transparent appearance, endows the building with a stronger sense of modernity and design, making the garage not only a functional space but also having a good display effect, which can effectively enhance the overall image and visual appeal of the building.

Improve Spatial Perception

The perspective structure effectively reduces the sense of oppression brought by traditional closed garages, making the interior space appear more open and transparent, enhancing the overall spatial layering and comfort. It is particularly suitable for projects with high requirements for spatial experience.

Lightweight

The transparent garage door is lighter than the ordinary garage door. Especially the PC material door panels are easy to transport, low in cost and easy to replace. Glass door panels are slightly heavier than PC door panels, but they offer better transparency, are more aesthetically pleasing and have a longer lifespan.
