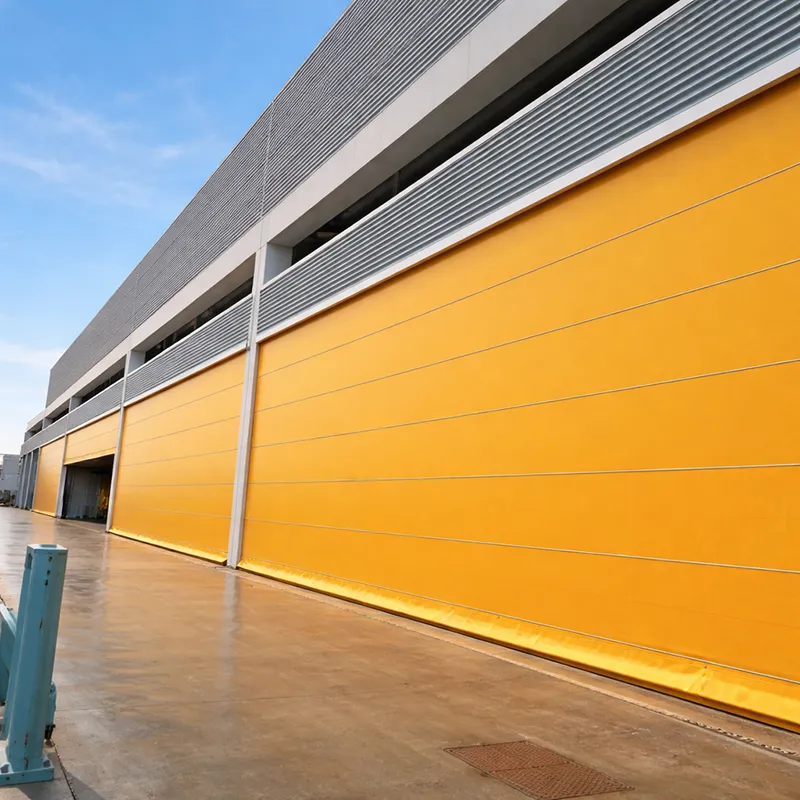

Fabric Mega Door

YUOU® fabric mega doors are designed with high-strength flexible door curtains and a stable frame system, specifically developed for large-sized industrial entrances and exits as well as special environmental applications. Door curtains are usually made of multiple layers of high-strength fiber materials, featuring excellent tear resistance and flexibility. When subjected to external force impacts, they can effectively absorb energy and reduce structural damage.

The overall weight of the door body is relatively light. Combined with an efficient drive system, it can achieve rapid opening and closing, improving the passage efficiency. Meanwhile, flexible structures are more adaptable in large-span applications, capable of meeting the demands of ultra-wide and ultra-high door openings, and maintaining stable operation under complex working conditions.

The color, size and special functions can all be customized. We will design exclusive drawings for you to ensure they are compatible with your building. If you encounter any difficulties during installation, YUOU® supports providing on-site installation guidance services to ensure the smooth installation of your door.

Technical Data

Applicable Door Opening Size	W42m*H24m
Motor Power	3.2KW-13KW
Running Speed	0.15m/s
Door Thickness	450-800mm
Work Temperature	-40℃～50℃
Wind Pressure Resistance	650N/m²
Control Box Protection Level	IP54
Control External Button Protection Level	IP54

Options

Color	Grey/White/Blue/Yellow/Red.etc Other colors can be customized.
Safety Device	①Airbag ②Alarm Light
Opening Method	①Control Box ②Remote Control ③Radar ④Geomagnetic Induction ⑤Pull Switch ⑥Gesture Sensing

Product Details

Explore the flexible curtain structure, reinforced frame system, and wind-resistant design engineered for smooth operation and long-term reliability.

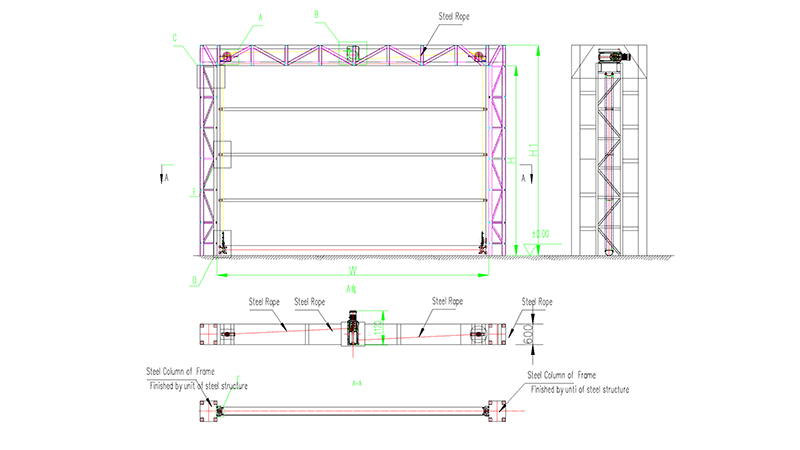

Structure Diagram

The fabric mega hangar door structural diagram clearly illustrates its curtain system, tensioning structure, and drive components, helping you quickly understand the door’s construction and operating principle.

Door Curtain

YUOU® flexible hangar doors use high-strength PVC industrial fabric curtains as the core material of the door body. They are usually composed of multi-layer composite structures and have excellent tensile and tear resistance, which can meet the usage requirements of large-sized door bodies. Even under frequent opening and closing and external force impacts, the fabric curtain still maintains good flexibility and structural stability.

The surface of PVC fabric curtains has excellent weather resistance and corrosion resistance, making them suitable for outdoor environments and complex climatic conditions. Meanwhile, the material has certain windproof and sealing effects, which helps to reduce air flow exchange and improve overall usage efficiency. It is an important component for flexible hangar doors to achieve lightweight and high performance.

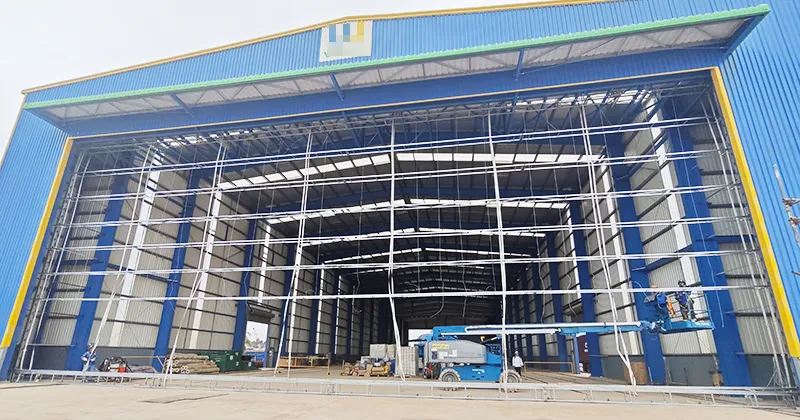

Steel Structure

YUOU® fabric mega door adopts a high-strength steel structure frame as the overall support system, providing a stable and reliable structural foundation for large-sized flexible door bodies. The frame has been reinforced in design, featuring excellent wind resistance and load-bearing capacity, and can maintain overall stability in applications with ultra-wide and ultra-high door openings.

The key load-bearing parts of the steel structure are reinforced to ensure that the door body is evenly stressed under frequent opening and closing and complex working conditions, and is less likely to deform or experience structural fatigue. The surface has undergone anti-corrosion treatment and has excellent weather resistance, making it suitable for application scenarios such as hangars and industrial plants where high structural strength and durability are required.

Motor

YUOU® flexible fold up hangar door is equipped with a dedicated drive motor system, designed for large-sized and lightweight door bodies, and features stable output and efficient operation capabilities. The motor can drive large-area PVC fabric curtains to open and close quickly and smoothly, meeting the requirements for passage efficiency in hangars and large industrial sites.

The drive system has been optimally designed to ensure the opening and closing speed while reducing operational vibration and noise, and enhancing overall stability. The motor can be equipped with automatic control and safety protection devices, adapting to high-frequency use and complex working conditions. It is the core power unit that ensures the efficient and safe operation of flexible doors.

Advantages

YUOU® fabric mega hangar door combines lightweight structure, smooth lifting operation, stable performance, and excellent cost-effectiveness, providing an efficient solution for extra-large openings.

Unmatched Wind Resistance

YUOU® mega doors feature heavy-duty, horizontal aluminum or steel wind trusses integrated directly into the double-layered PVC curtain. During extreme weather events (including typhoons and hurricanes), these robust wind bars transfer the immense kinetic wind load evenly into the vertical side guides. This engineered flexibility prevents the door from blowing out, ripping, or derailing, offering superior resilience compared to rigid steel panels that buckle under pressure.

Zero Floor Tracks: Unobstructed Heavy-Duty Access

The YUOU® fabric fold-up door operates via a top-mounted vertical lifting system. When fully open, the doorway is 100% clear. There are no fragile floor rails to maintain, ensuring perfectly smooth passage for colossal machinery, aircraft, or heavy transport vehicles without the risk of jamming or tripping.

Adapts to Building Deflection & Ground Settlement

In large buildings (such as hangars with a span exceeding 100 meters), roof deformation caused by structural settlement and temperature is inevitable. When even the slightest displacement occurs in a building, the traditional rigid gate will get stuck or derail. The genius of YUOU® flexible doors lies in their inherent flexibility. The non-rigid door curtain and the dedicated side guide rail design can effortlessly absorb the movement of the building, ensuring smooth operation even with minor structural changes.

Corrosion-Proof & Extreme Weather Durable

Designed for the harshest environments on Earth. Whether blasted by corrosive saltwater in coastal shipyards, subjected to highly abrasive dust in mining operations, or enduring -40°C arctic freezing, our doors persevere. The premium, multi-layered PVC fabric is highly UV-resistant, rot-proof, and impervious to industrial chemicals. Furthermore, all internal load-bearing components and side guides are heavily galvanized or coated to completely prevent rust and degradation.

High-Speed Operation for Maximum Efficiency

Colossal steel doors can take agonizing minutes to open, creating severe logistical bottlenecks and massive energy loss. Driven by specialized, high-performance rapid door motors (with variable frequency drives for soft start/stop), YUOU® fabric mega doors operate at significantly faster speeds than conventional sliding or rolling hangar doors. This rapid vertical lifting accelerates the traffic flow of forklifts, trucks, and aircraft, while drastically reducing the time your building’s interior is exposed to outside temperatures.

Highly Intelligent

Furthermore, our advanced control panels are fully programmable for smart integration. The high-speed motor seamlessly connects with a wide array of intelligent access systems—including radar motion sensors, magnetic loop detectors for vehicles, remote controls, and centralized Building Management Systems (BMS). This "smart door" capability ensures automated, touchless entry, elevating your facility's operational efficiency and security to the highest level.
