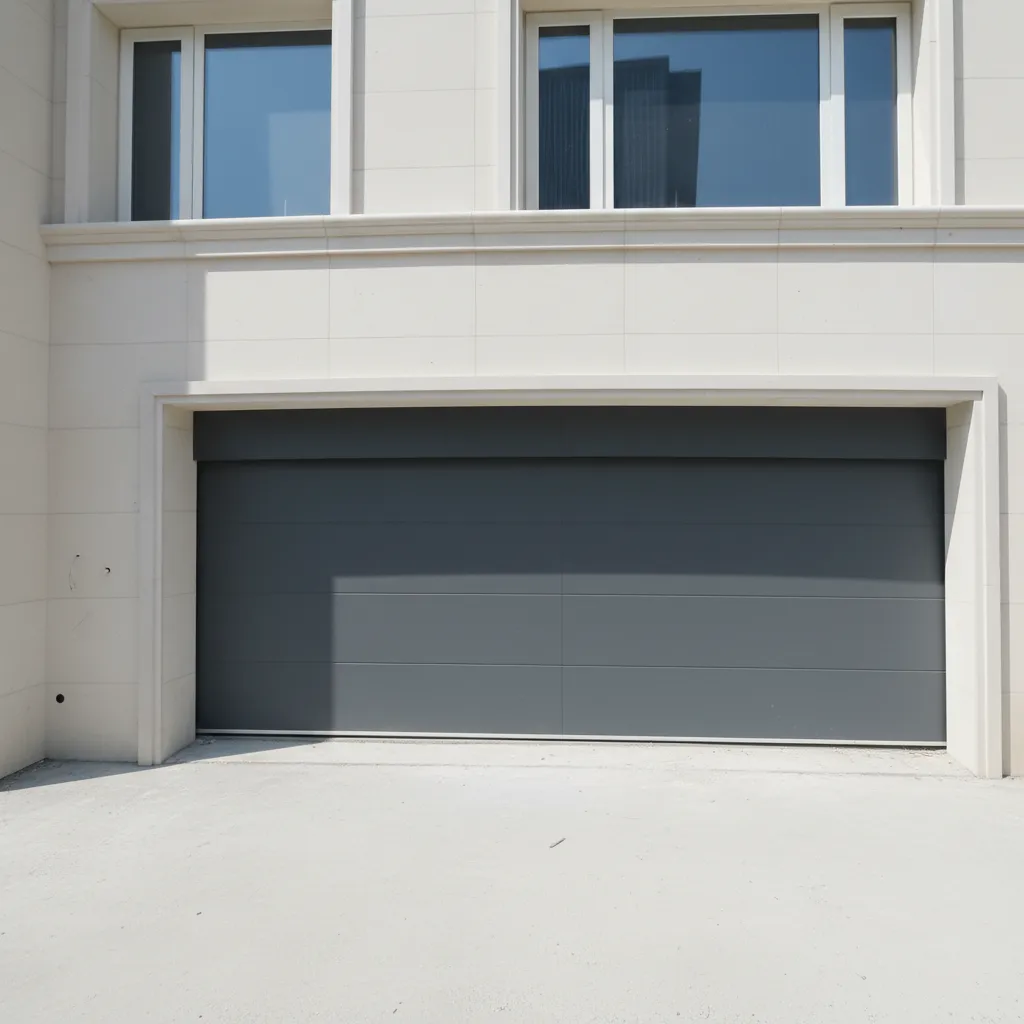

Aluminum Alloy Sectional Garage Door
YUOU® aluminum alloy garage doors adhere to the brand’s consistent engineering design concept. They are made of high-strength aluminum alloy profiles and combined with a mature and stable structural system, featuring high overall strength and reliable operation. They are suitable for long-term and high-frequency usage scenarios. Aluminum alloy material features excellent corrosion and oxidation resistance, is not prone to rust or aging, and can maintain stable structural performance and clean appearance quality even in damp, rainy or coastal environments, fully demonstrating YUOU’s strict requirements for product durability.
In terms of the operation system, the YUOU® aluminum alloy garage door is equipped with high-precision guide rails, rollers and balance structures. Through reasonable force design, it ensures smooth opening and closing of the door body, stable operation and lower noise. From material selection to structural details, YUOU® adheres to reliability and long-term use value as the core, providing users with aluminum alloy garage door solutions that balance safety, protection and quality. It is suitable for private garages and residential projects that have high requirements for both performance and appearance.
Technical Data
| Door Panel Material | Aluminum alloy |
| Frame Material | Steel |
| Max Size(mm) | W8000*H6000 |
| Thickness of the Aluminum Plate | 3mm |
| Thickness of the Panel | 60mm |
| Power Supply | 220±10%V, or 380V, 50/60Hz |
| Opening and Closing Speed | 20-40cm/s |
| Door Panel Thickness | 60mm |
| Wind Resistance | 28-35m/s (Class 10-12) |
| Motor IP level | IP55 |
| Accessories | Single Track with min headroom for 350mm; Double Track with min headroom for 150mm |
Options
| Window Material | ①Glass ②PC(Polycarbonate) |
| Small Door | Customizable |
| Voltage | Standard: 220V±10%. Other voltages can be customized. |
| Color | White/Grey/Black/Blue/Yellow/Red.etc Other colors can be customized. |
| Safety Device | Anti-fall device |
Product Details
Refined Manufacturing Details Reflecting YUOU’s Commitment to Quality and Engineering Standards
Structure Diagram
Our aluminum sectional garage doors come with detailed CAD drawings, illustrating key components such as panels, tracks, springs, motors, and control boxes. Optional non-standard configurations, including windows and pedestrian doors, are also available. Each customer receives an exclusive CAD drawing, providing a clear understanding of the aluminum garage door they require and ensuring smooth installation and operation.

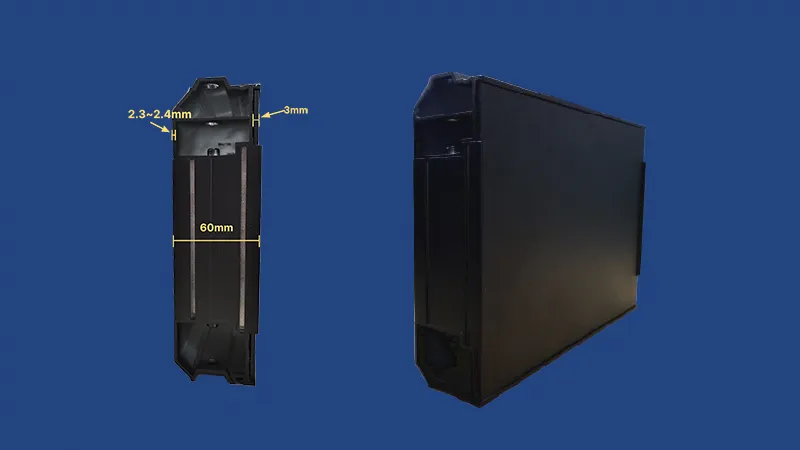

Sandwich Panel
Thickness of the panel: 60mm
Panel length:2m-12m. Panel width:500mm
Optimized Motor System for Lightweight Aluminum Garage Doors
Designed to match the lightweight structure of aluminum garage doors, this motor system offers efficient and smooth operation with reduced energy consumption.
The intelligent control program ensures precise door movement, supported by a fast-response brake and accurate mechanical limit for enhanced safety.
A built-in thermal overload protector safeguards the motor during continuous operation, while the manual chain allows reliable use in case of power outages.
Premium-grade lubricating grease minimizes friction and wear, delivering long service life with minimal maintenance requirements.
Lightweight Balance Spring Design
Specifically matched to the lightweight structure of aluminum garage doors, the balance spring system ensures stable and effortless door operation by accurately balancing the door panel through a wire rope mechanism.
The built-in spring brake device prevents uncontrolled movement in the event of spring failure, improving user safety.
With a service life of up to 100,000 cycles and a driving force of 140N, the system is optimized according to the door’s dimensions, weight, and lifting configuration.
Lightweight Three-Angle Wheel Support Design
Designed to match the lightweight construction of aluminum garage doors, the three-angle wheel support system ensures accurate load distribution and consistent wheel-to-track contact. This structure reduces operating resistance and noise, minimizes wear over time, and helps maintain smooth and durable door operation.
Lifting Method
Advantages
Built with high-strength aluminum alloy, durable and reliable, offering comprehensive protection for your home.
Secure and Reliable with Sleek Frameless Design
The YUOU® aluminum frameless garage door is designed with safety as its core principle. Featuring high-strength aluminum panels, a stable and reliable transmission system, and secure locking mechanisms, it effectively prevents unauthorized access and enhances overall protection for private garages. Precision manufacturing combined with durable materials ensures the door remains firmly closed over long-term use, providing continuous and dependable security for vehicles and valuables, demonstrating the brand’s professional strength in quality and safety.
Sleek, Modern, and Visually Appealing
The aluminum frameless garage door features smooth panels and tight joints, offering a clean and elegant appearance. It supports frameless windows to enhance natural light and modern aesthetics, making the garage door more design-conscious and visually appealing. Compared to standard garage doors, aluminum frameless doors excel in overall texture and visual effect, seamlessly complementing a variety of home styles.
Corrosion-Resistant and Rust-Proof
Aluminum alloy itself has natural anti-oxidation properties and is a highly corrosion-resistant and rust-proof metal material. Aluminum alloy door panels that have undergone high-quality spraying treatment have further enhanced corrosion resistance and can maintain a brand-new texture even after long-term use.
Outstanding Wind Resistance for Stable Performance
The aluminum frameless garage door features reinforced panels, a stable guide rail system, and optimized load-bearing design to enhance overall wind resistance. In strong wind conditions, the door remains stable, resisting shaking, deformation, or derailment, and significantly reduces the risk of wind-related damage. Its excellent wind resistance makes it ideal for open areas, coastal locations, or windy environments, providing continuous and reliable protection for your garage.
Efficient Space Utilization and Convenient Operation
The aluminum frameless garage door features a compact design and optimized opening method, requiring no extra front, rear, or side space during operation. The door runs smoothly along the guide rails, adaptable to top or side layouts, leaving more usable space for vehicle access and internal storage. It is particularly suited for private garages and residential settings with limited space, enhancing overall convenience and maximizing space efficiency.
