Aluminum Alloy Roller High Speed Door

YUOU® aluminum alloy roller rapid door is an upgraded product between traditional aluminum alloy rolling shutter doors and high-speed rapid doors. It achieves a higher opening and closing speed while maintaining the structural strength and stability of aluminum alloy. Its opening speed is significantly better than that of ordinary aluminum alloy rolling shutter doors, which can effectively improve the passage efficiency. At the same time, the operation rhythm is relatively more stable than that of ordinary rapid doors, taking into account both speed and structural durability.

The door body adopts high-strength aluminum alloy door curtains and a roller-type winding structure. The overall structure is compact and occupies a small space. The drive system has been optimally designed to ensure smooth operation while reducing vibration and noise.

YUOU® aluminum alloy roller rapid doors are widely used in scenarios such as factory passageways, storage areas, and logistics entrances and exits. They are practical solutions that balance efficiency, stability, and long-term reliability in use.

Technical Data

Door Panel Material	Aluminum alloy + Polyurethane Foam
Frame Material	Galvanized Steel
Max Size(mm)	W8000*H8000
Max Opening Speed	2.0m/s
Max Closing Speed	1.0m/s
Normal Opening Speed	1.2m/s
Normal Closing Speed	0.6m/s
Voltage	220V±10%
Output Power	0.75KW-2.2KW
Motor IP level	IP54
Opening Frequency	1000 times/day
Wind Resistance	35m/s (Class 12)
Sound Insulation Level	25DB
Water Tightness	30Pa
K Value	0.4W/m²•K
Thermal Conductivity	19W/m²•K

Options

Door Panel	①Aluminum alloy ②Aluminum alloy + PU(Polyurethane) foam
Frame	①Galvanized Steel ②Stainless Steel
Voltage	Standard: 220V±10%. Other voltages can be customized.
Color	Grey/White/Blue/Yellow/Red.etc Other colors can be customized.
Safety Device	①Airbag ②Alarm Light
Opening Method	①Control Box ②Remote Control ③Radar ④Geomagnetic Induction ⑤Pull Switch ⑥Gesture Sensing

Product Details

From the curtain structure to the drive system, the engineering details and performance advantages of the aluminum alloy roller rapid rolling shutter door are presented in all aspects.

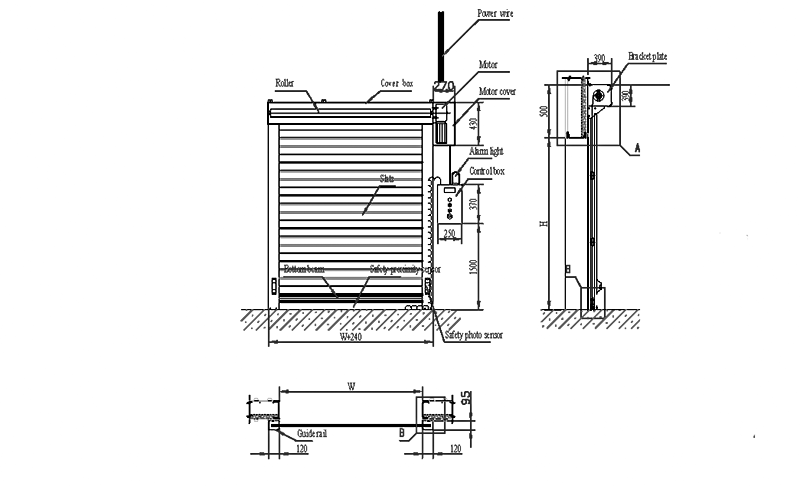

Structure Diagram

The aluminum alloy roller high speed door structural diagram clearly presents its drum structure and key components, allowing you to quickly understand the door’s construction and operating principle.

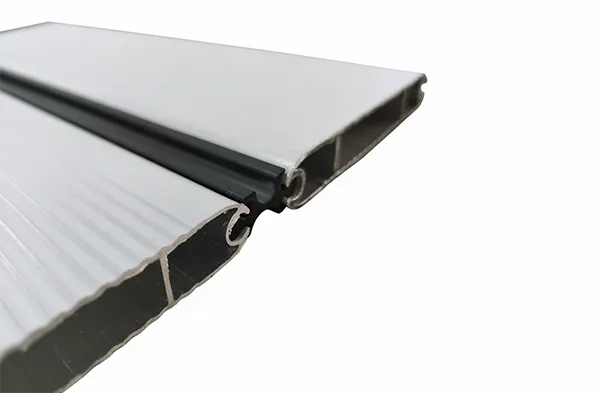

Door Curtain

YUOU® aluminum alloy roller rapid doors feature a double-layer aluminum alloy panel structure, with each standard panel measuring 10cm in height and 1.5cm in total thickness, ensuring high strength and structural stability. The hollow interior design allows optional polyurethane foam filling to enhance thermal insulation and soundproofing. This construction guarantees durability while improving operational efficiency, making it ideal for industrial and logistics environments requiring high-frequency opening and closing.

Servo Motor

The aluminum alloy roller high speed door is equipped with a dedicated high-speed motor system designed for stable and efficient operation. Featuring advanced servo control technology and a user-friendly interface, it ensures precise and smooth performance. The dual-encoder system enhances positioning accuracy, reduces failure rates, and improves overall reliability.

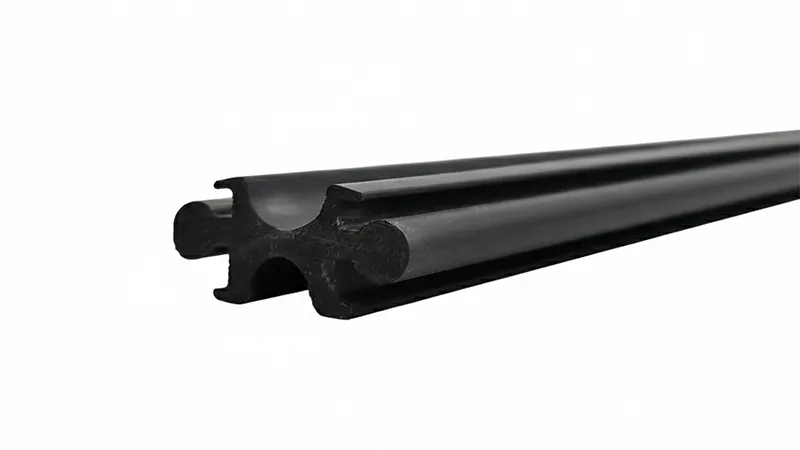

EPDM Sealing Strips

The door panels of aluminum alloy roller rapid doors are connected and sealed using EPDM rubber strips. EPDM material offers excellent elasticity and weather resistance, providing cushioning and shock absorption during high-speed door operation to reduce direct friction and noise between panels.

Simultaneously, the rubber strips effectively fill gaps between panels, enhancing overall sealing performance and reducing dust and airflow infiltration. Their stable resistance to aging and temperature variations makes them suitable for long-term industrial environments, contributing to improved operational stability and extended service life of the door system.

Photocell Sensor

When a person or vehicle is detected beneath the aluminum alloy roller high speed door, the door immediately stops and reverses automatically. This intelligent safety function prevents accidental collisions and protects both personnel and equipment. By responding quickly to obstacles, the system ensures safe and efficient operation in industrial and commercial environments.

Safety Bottom Edge

When the aluminum alloy roller high speed door descends and encounters an obstacle, the built-in safety bottom sensor immediately detects the resistance and triggers automatic reversal. This function effectively protects personnel and goods from injury while reducing potential damage to the door system, lowering maintenance costs and ensuring long-term stable operation.

Opening Methods

Aluminum alloy roller high speed doors offer multiple intelligent opening methods to meet different operational requirements:

Vehicle Loop Detector
Automatically opens when vehicles approach, ensuring smooth and efficient logistics traffic without manual operation.

Radar Sensor
Detects motion and triggers automatic opening, ideal for high-traffic areas requiring contactless access.

Push Button
Provides reliable manual control, suitable for controlled access scenarios where precise operation is needed.

Pull Switch
Simple and practical operation method, commonly used in industrial environments for quick activation.

Remote Control
Allows convenient long-distance operation, improving efficiency and flexibility in daily use.

These opening options enhance the adaptability and efficiency of aluminum alloy drum high-speed doors, ensuring stable and intelligent performance across various industrial and commercial applications.

Advantages

The aluminum alloy roller high speed door combines lightweight strength, rapid operation, stable performance, and high cost-effectiveness for efficient industrial access control.

Faster Running Speed

The YUOU® aluminum alloy roller rapid door operates at a faster speed than ordinary aluminum alloy rolling shutter doors and is specially designed for high speed and efficient operation. Rapid opening and closing significantly enhance the operational efficiency in modern industrial environments. The running speed can be adjusted through the control system to meet different usage requirements.

Energy Efficiency

Aluminum alloy roller rapid doors, due to their faster speed and thicker door panels, not only enhance operational efficiency but also possess excellent energy-saving performance. Effectively reduce the exchange of cold and hot air, help maintain a stable indoor temperature in a controlled environment, thereby lowering energy consumption and operating costs, and achieving more efficient and environmentally friendly space management.

Safety

Considering the high operating speed of the aluminum alloy roller high speed door, multiple safety protection systems are integrated, including safety edge sensors and photoelectric sensors. These devices ensure immediate response when detecting obstacles. In addition, the optimized door structure reduces potential impact risks, providing safer passage for personnel and vehicles.

More Durable

It adopts thickened aluminum alloy door panels and high-quality steel structure to ensure excellent wear resistance and durability. Reinforcing the drum structure enhances overall stability and extends service life. With a reliable system design and low maintenance requirements, it achieves long-term stable operation.
